TEKTRONIX 585A 1964 Mainframe Oscilloscope More Info Here

The specific oscilloscope we have in the collection is currently serviced and functioning. However like all machines! working when you visit is never a guarantee.

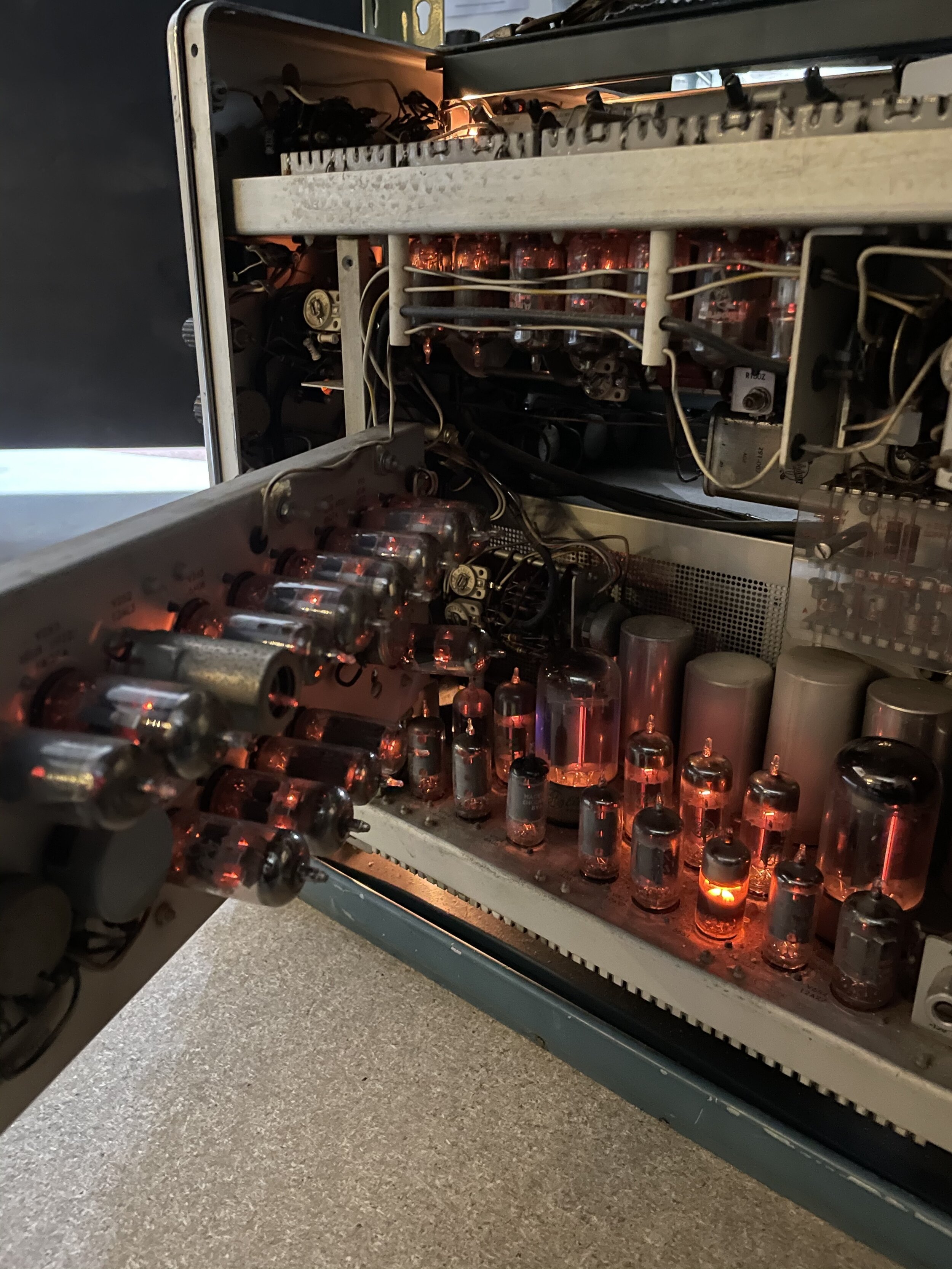

It is displayed as a functioning Exploded Display so visitors can see the sheer amount of vacuum tube electronics are within such a behemoth of an oscilloscope/heater.


Front View with the TYPE G Plug in unit 4DE 99


Note the Large Cooling fan at the rear measuring 8 inches in diameter

this oscilloscope houses about 50 vacuum tubes
